LM-104T |
|

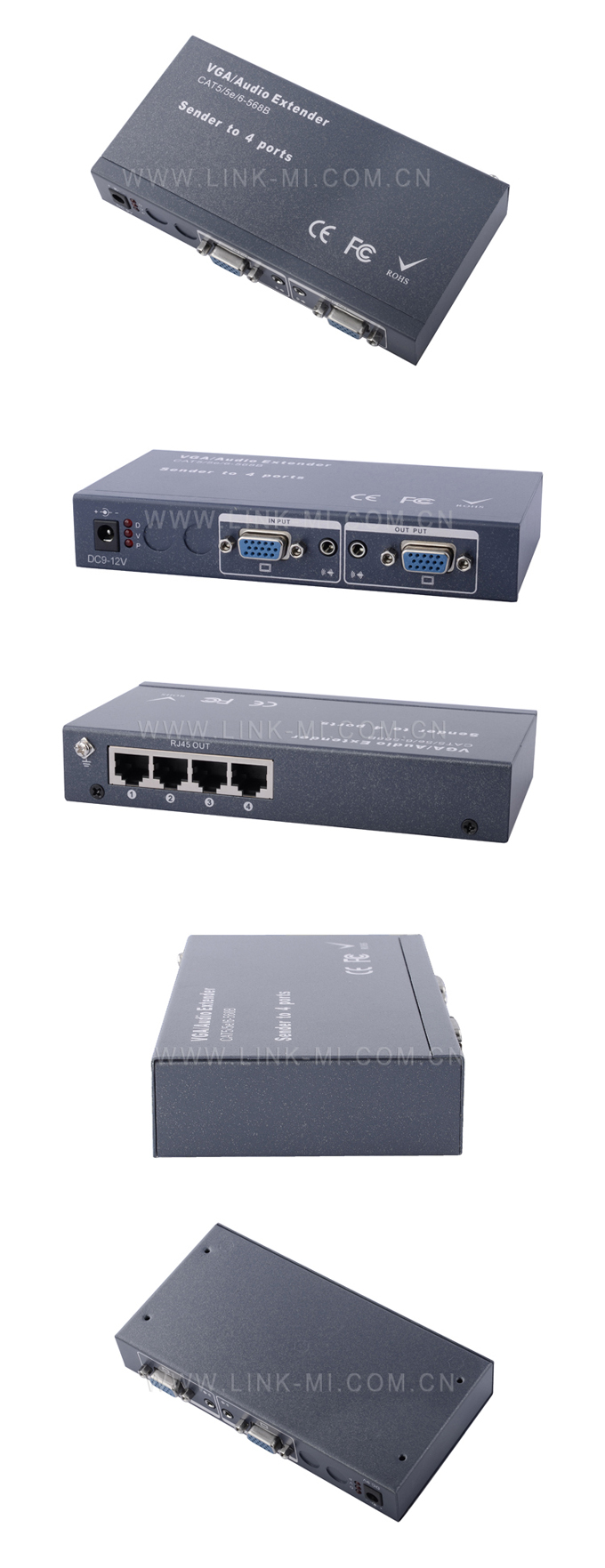

| LINK-MI LM-104T 4 Channel VGA Video Transmitter |
| |
Introduction:
1. Sharpest and clearest VGA quality over CAT5 of any manufacturer.2. Hi performance Audio quality over CAT5 of any manufacturer3. Supports local and remote VGA monitors and Speaker.4. Real Time Transmission Video & Audio signals by single CAT5 cable5. No TCP/IP protocol and networking setting and maintenance6. No Ant firewall needed, no IP and networking occupation7. Plug and Play, compatible with all format VGA video signals.8. Built-in ESD and surge protection.9. Available with VGA contact and RGB brightness adjustment10. Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.11. Metal case |
|
|
| |
|
|
|
|
Specification
|
Power properties |
Adaptive Voltage Arrange |
12V DC(power adaptor) |
|
Power Consumption |
<3.5w |
|
Connectors |
DC Jack |
|
|
|
Video
properties |
Video Input Connector |
1* 15pin HD15 male; Impedance: 75Ω |
|
Local Video Output connector |
1* 15pin HD15 female; Impedance: 75Ω |
|
UTP Cable Connector |
4* RJ-45; Impedance: 50Ω |
|
Signal Transmission Band |
>350MHz(-3db) |
|
Linear Distortion |
<3% |
|
Synchronous signal |
0-5V,TTL PWL |
|
Synchronous signal band |
1K-200KHz |
|
DDC2 |
Virtual DDC |
|
Audio properties |
Connectors |
2* 3.5mm Audio Jacks |
|
Input Impedance |
10kΩ |
|
Output Impedance |
600Ω |
|
Transmission Band |
10-20KHz |
|
Physical
Properties |
Dimensions (LWH) |
210*85*32mm |
|
Housing Material |
Metal |
|
Color |
blue |
|
N.W. |
540g |
|
Environmental |
Operating Temperature |
0~70 |
|
Relative Humidity(non-condensing) |
10~85% |
|
Storage Temperature |
-10~80 |
|
Accessories |
Power Adaptor |
Power supply input: 100-240V AC
Power supply output: 12V DC/ 1Amp
Wire Length:2m |
|
USB Cable(A-B) |
Length: 1.5m |
|
VGA Cable(F-M) |
Length:1.2m |
|
Audio Cable(M-M) |
Length:1.5m |
|
Casing |
Gross Weight |
500g |
|
Casing Volume(L*W*H) |
155*78*28mm |
Packing Contents
1. Mani Unit. 4 Channel VGA Video Transmitter
2. 1pcs Power Adapter
3. 1pcs User Manual |
 |
|
|
|
|
